IMPROVE Mini Stackable High Voltage Energy Storage System

high voltage energy storage system -- IMPROVE BATTERY

Specifications
Qty. of Batteries		3	4	5	6	7	8
Dimensions (L × W × H)		650×290×805 mm	650×290×970 mm	650×290×1135 mm	650×290×1300 mm	650×290×1465 mm	650×290×1630 mm
Approx. Weight		131 kg	166 kg	201 kg	236 kg	271 kg	306 kg
Battery Module		51.2V 72Ah (3686.4Wh)
Nominal Capacity		72Ah
Total Voltage		153.6V	204.8V	256.0V	307.2V	358.4V	409.6V
Total Energy		11.05 kWh	14.74 kWh	18.43 kWh	22.11 kWh	25.80 kWh	29.49 kWh
Charge	Standard Charge Current	30A
	Max. Charge Current	60A
	Charge Voltage	175.2V	233.6V	292.0V	350.4V	408.8V	467.2V
Discharge	Max Continuous Discharge Current	60 A
	Discharge Cut-off Voltage	134.4V	183.2V	234.0V	286.8V	341.6V	398.4V
Anode Material		LFP/LiFePO₄
Cycle Life		>6000 Cycle @80%DOD, at 25℃
Self Discharge Rate		≤3% per month at 25℃
Temperature	Charge	0~50℃
	Disharge	-20~60℃
	Storage	15~35℃
User Interface		4.3-inch touchscreen

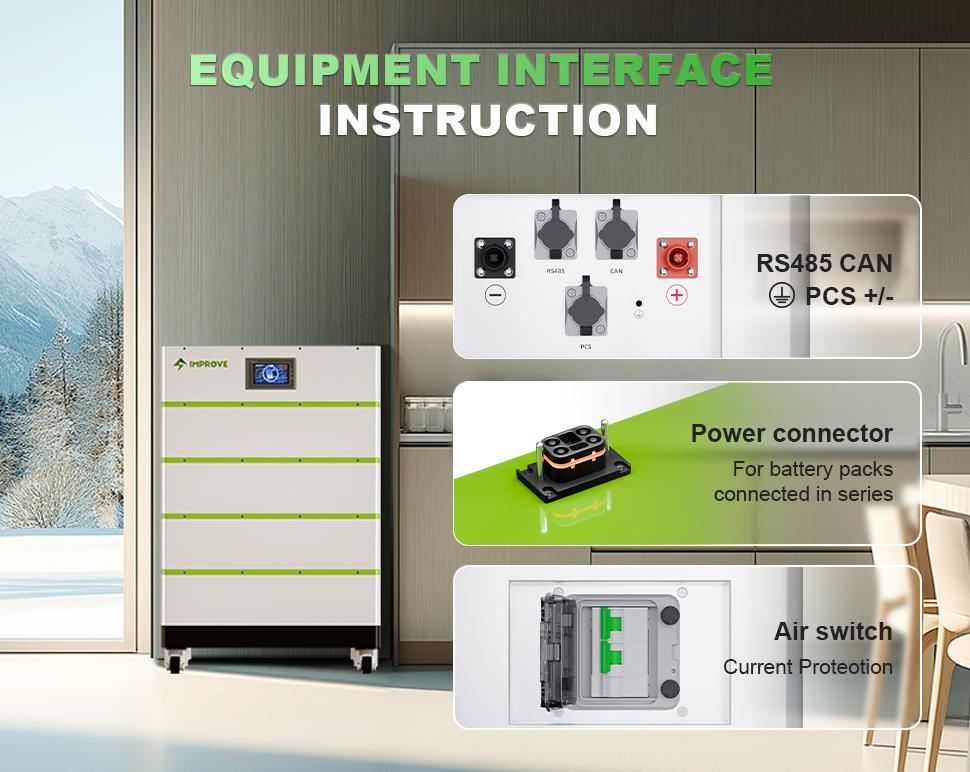

Communication	PCS	×1
	CAN	×1
	RS485	×1
