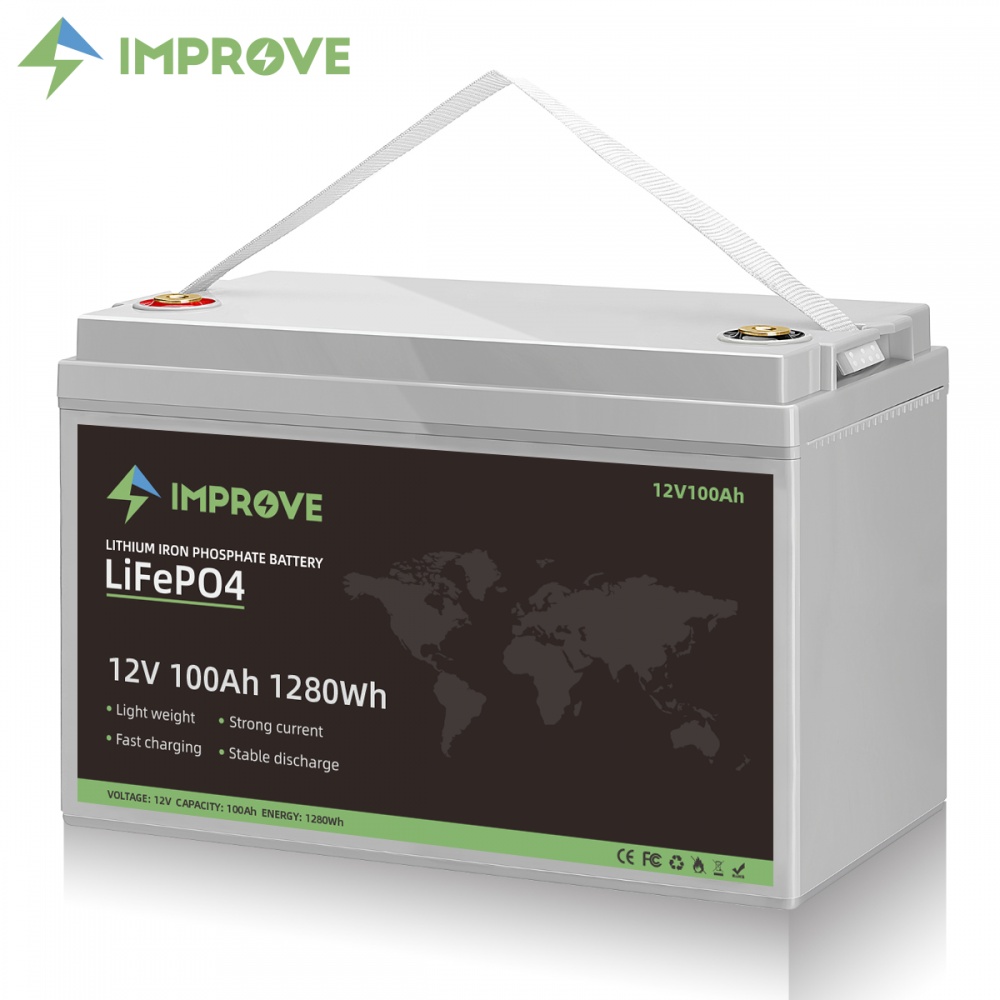

12V/12.8V IMPROVE LiFePO4 Batteries
Good choice for daily power supply

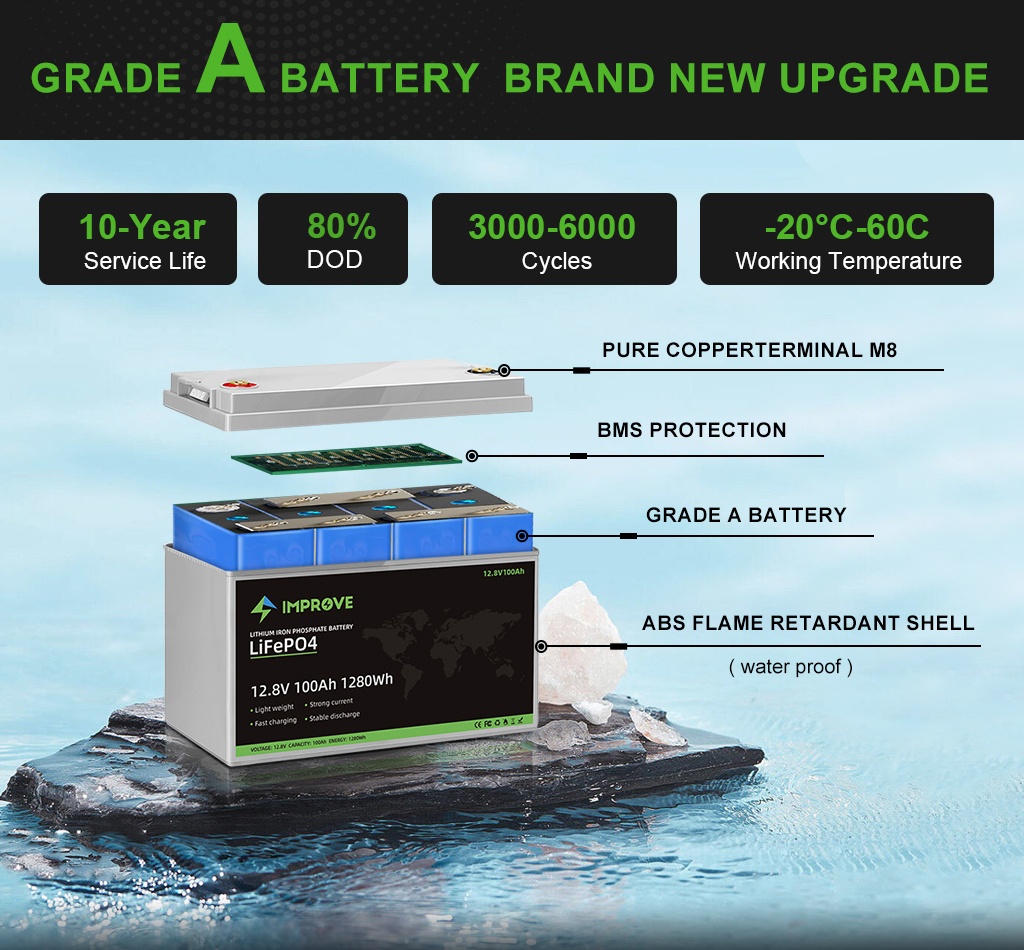

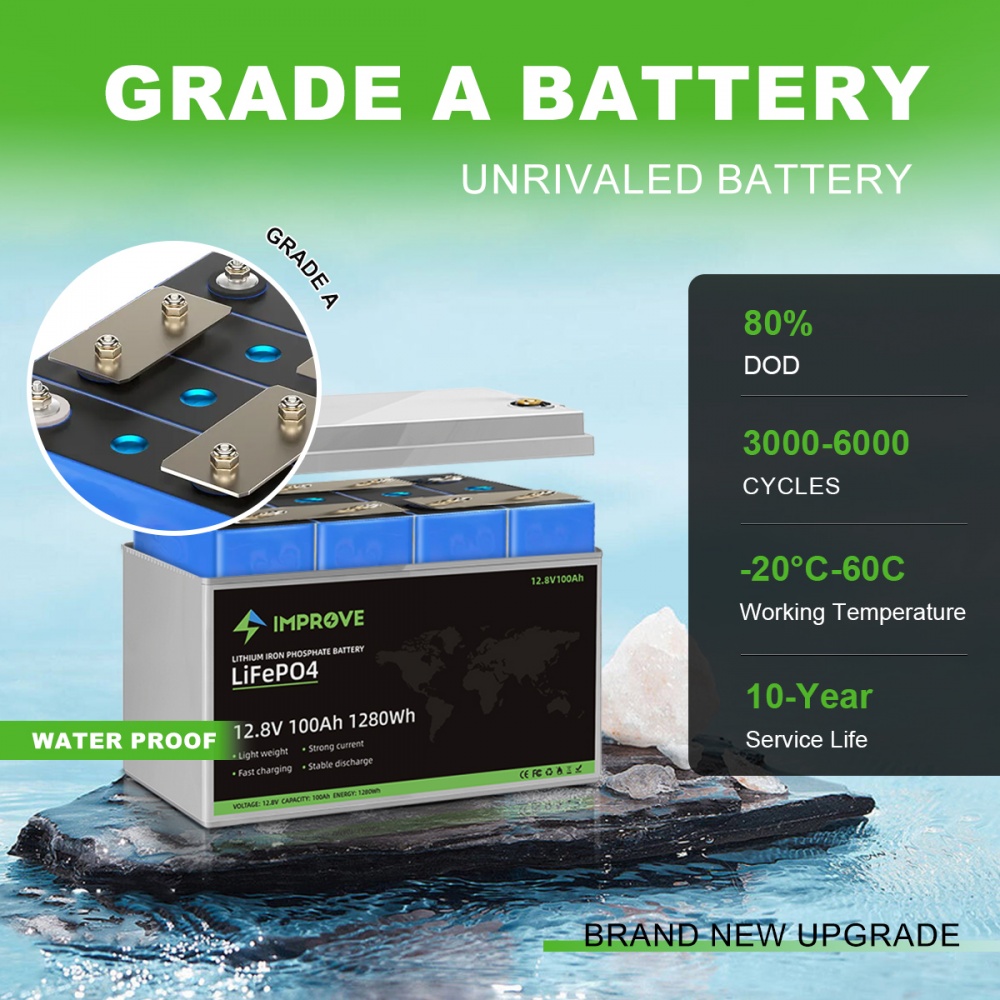

12.8V IMP LiFePO4 Battery Series includes 12.8V 40 - 400Ah, assembly with Grade A battery cell, Smart BMS;

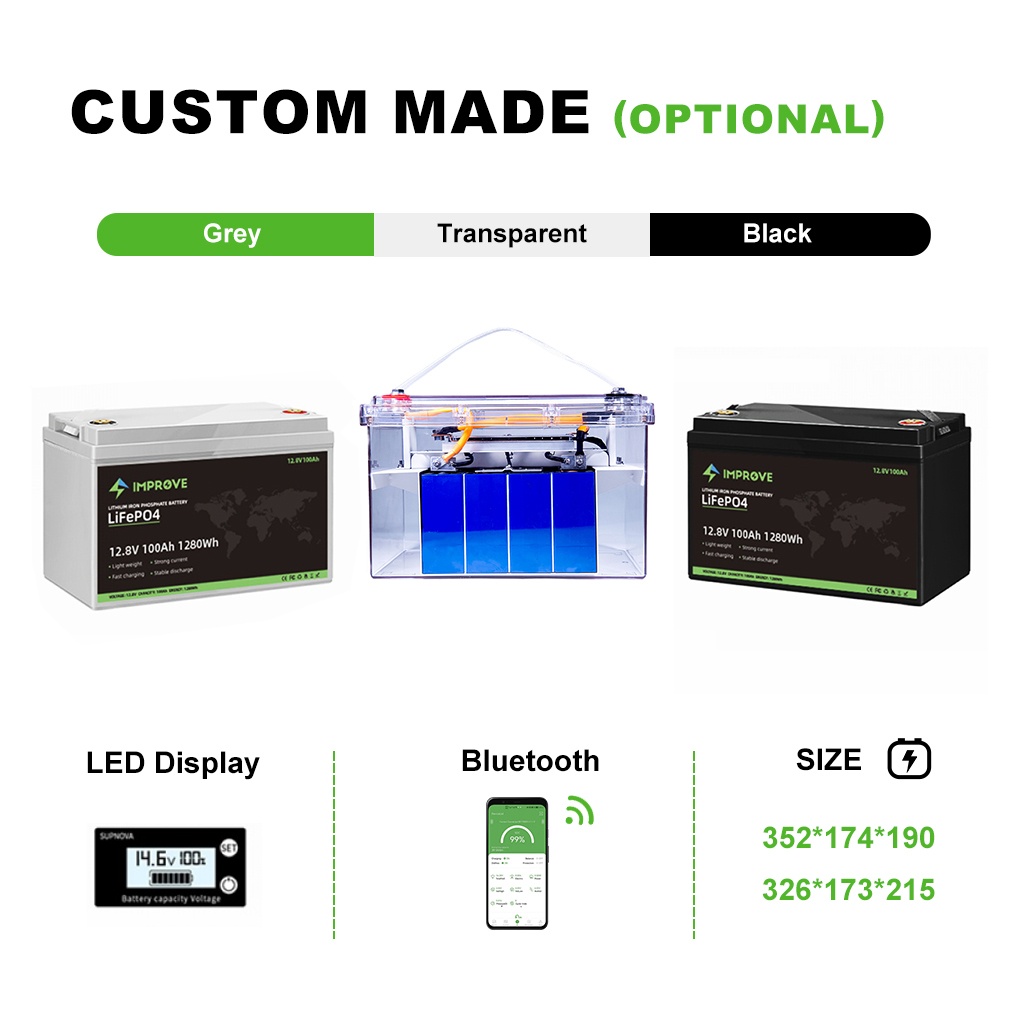

Supports parallel/serial connection, communication function and customized accessories.

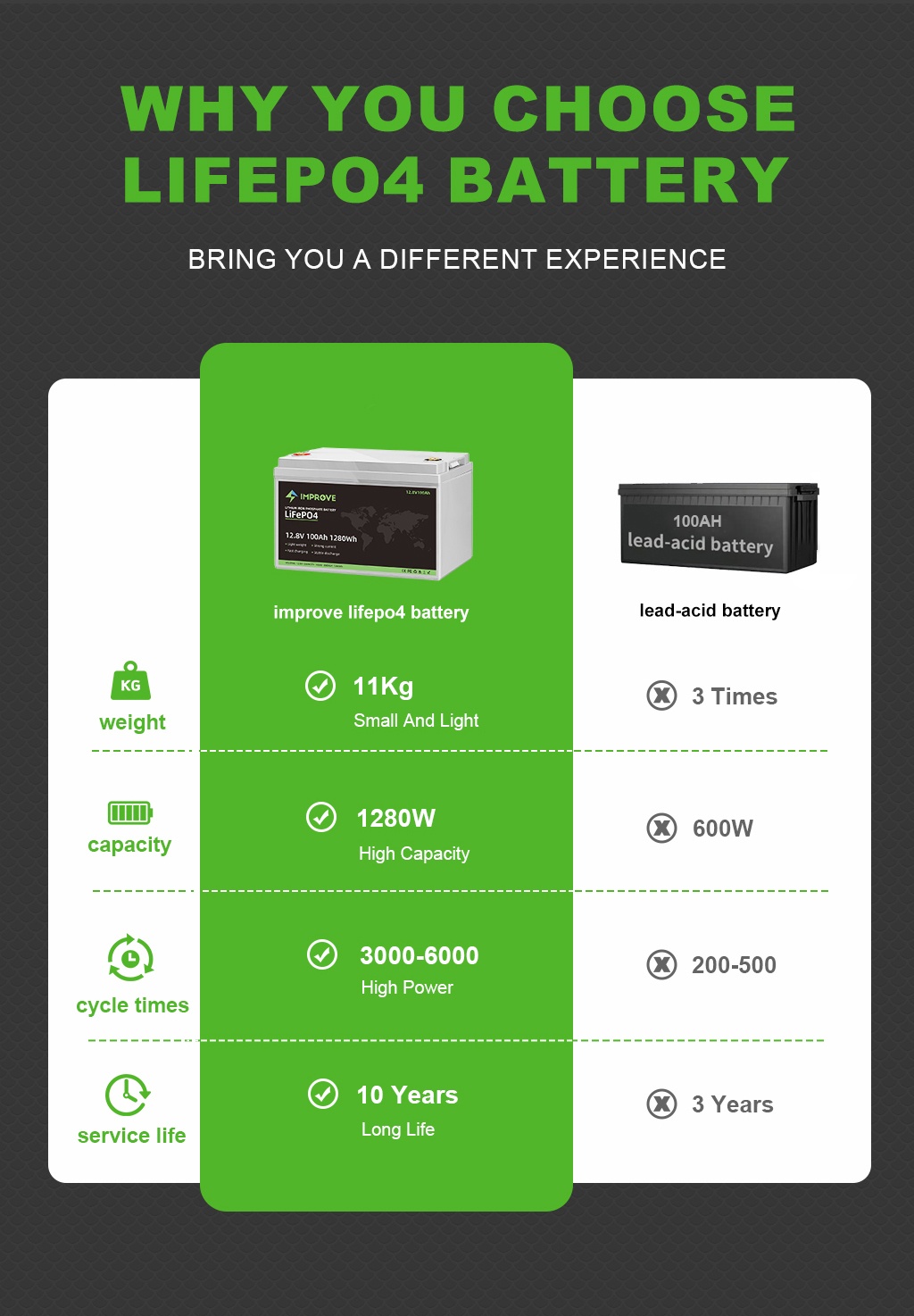

12.8V IMP LiFePO4 battery series has a variety of product models and sizes, which can perfectly replace lead-acid batteries and are widely used in communication base stations, solar energy storage, and factory/engineering backup power.
12V30~100Ah (If need other capacity, pelase contact us)
Datasheet | Specification | ||||||
Model | 12V30Ah | 12V40Ah | 12V50Ah | 12V60Ah | 12V80Ah | 12V100Ah | |
Nominal Voltage | 12.8V | ||||||
Nominal Capacity | 30Ah | 40Ah | 50Ah | 60Ah | 80Ah | 100Ah | |
Nominal Energy | 384Wh | 512Wh | 640Wh | 768Wh | 1024Wh | 1280Wh | |
Dimension (L * W * H) |
165*175*125 |
198*166*170 mm |
198*166*170 mm |
238*172*221 mm |
260*172*224 mm |

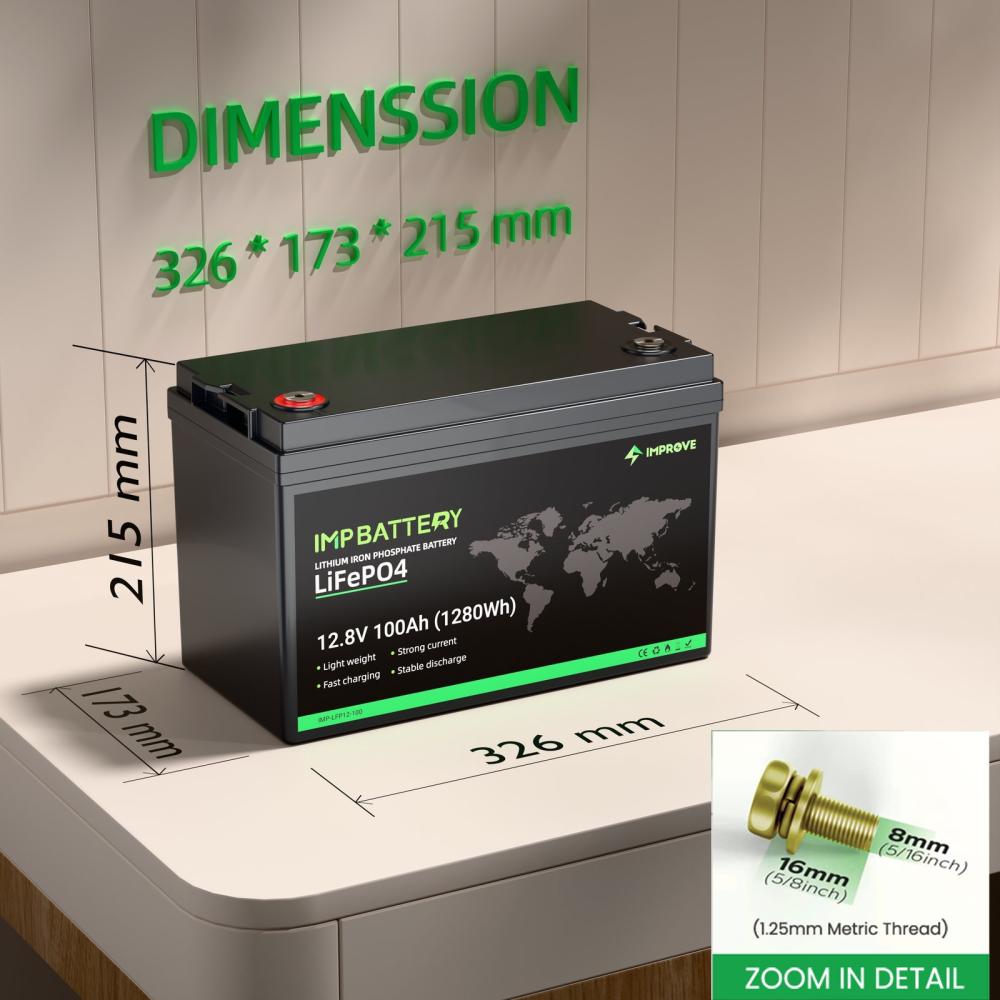

326*173*215 352*174*190 mm |
|
Approx. Weight | 4.3kg | 6.7kg | 7kg | 7.5kg | 9kg | 11kg | |
Terminal | M5 | M8 | |||||
Cycle Life |
≥3000 Cycle @80%DOD, at 25°C
|
||||||
Months Self Discharge |
≤3% per month at 25°C
|
||||||
General | |||||||
Charge
|
Charge Voltage
|
14.6+0.2V Calculated according to 3.65V voltage of each cell
|
|||||
Standard Charge Current | 0.2C | ||||||
Max. Charge Current | 0.5C | ||||||
Discharge
|
Max. Continuous
Discharge Current
|
1C
|
|||||
Peak Discharge Current
|
2C (<3S)
|
||||||
Discharge Cut-off Voltage
|
10.0V Calculated according to 2.5V voltage of each cell
|
||||||
Temperature
|
Charge
|
0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity
|
|||||
Discharge
|
-20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity
|
||||||
Storage
|
15°C ~ 35°C (Please charge and discharge your battery every month)
|
||||||
Parallel Connection
|
Support 4pcs in Parallel
|
||||||
Serial Connection
|
Support 4pcs in Series
|
||||||
Note
|
|||||||
Series and Parallel connections DO NOT recommended at the same time | |||||||
If need serial connection, please check whether the model support
|
12V120~400Ah (If need other capacity, pelase contact us)
Datasheet | Specification | ||||||
Model | 12V120Ah | 12V150Ah | 12V200Ah | 12V240Ah | 12V300Ah | 12V400Ah | |
Nominal Voltage | 12.8V | ||||||
Nominal Capacity | 120Ah | 150Ah | 200Ah | 240Ah | 300Ah | 400Ah | |
Nominal Energy | 1536Wh | 1920Wh | 2560Wh | 3072Wh | 3840Wh | 5120Wh | |
Dimension (L * W * H) |
326*173*215 |
522*238*218 mm |
522*238*218 mm |
522*238*218 mm |
522*238*218 mm |
640*245*220 mm |
|
Approx. Weight | 14kg | 18kg | 22kg | 26kg | 29.5kg | 37kg | |
Terminal | M8 | ||||||
Cycle Life |
≥3000 Cycle @80%DOD, at 25°C
|
||||||
Months Self Discharge |
≤3% per month at 25°C
|
||||||
General | |||||||
Charge
|
Charge Voltage
|
14.6+0.2V Calculated according to 3.65V voltage of each cell
|
|||||
Standard Charge Current | Customized | ||||||
Max. Charge Current | Customized | ||||||
Discharge
|
Max. Continuous
Discharge Current
|
Customized
|
|||||
Peak Discharge Current
|
Customized
|
||||||
Discharge Cut-off Voltage
|
10.0V Calculated according to 2.5V voltage of each cell
|
||||||
Temperature
|
Charge
|
0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity
|
|||||
Discharge
|
-20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity
|
||||||
Storage
|
15°C ~ 35°C (Please charge and discharge your battery every month)
|
||||||
Parallel Connection
|
Support 4pcs in Parallel
|
||||||
Serial Connection
|
Support 4pcs in Series
|
||||||
Note
|
|||||||
Series and Parallel connections DO NOT recommended at the same time | |||||||
If need serial connection, please check whether the model support
|
12V100Ah (1700CCA) (If need other capacity, pelase contact us)
Datasheet | Specification | |
Model | 12V100Ah (1700CCA) | |
Nominal Voltage | 12.8V | |
Nominal Capacity | 100Ah | |
Nominal Energy | 1280Wh | |
Dimension (L * W * H) |
326*173*215 |
|
Approx. Weight | 0.75kg | |
Terminal | F2 | |
Cycle Life |
≥3000 Cycle @80%DOD, at 25°C
|
|
Months Self Discharge |
≤3% per month at 25°C
|
|
General | ||
Charge
|
Charge Voltage
|
14.6+0.2V Calculated according to 3.65V voltage of each cell
|
Standard Charge Current | 0.2C | |
Max. Charge Current | 0.5C | |
Discharge
|
Max. Continuous
Discharge Current
|
1C
|
Peak Discharge Current
|
1700A (<3S)
|
|
Discharge Cut-off Voltage
|
10.0V Calculated according to 2.5V voltage of each cell
|
|
Temperature
|
Charge
|
0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity
|
Discharge
|
-20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity
|
|
Storage
|
15°C ~ 35°C (Please charge and discharge your battery every month)
|
|
Serial Connection
|
Support 4pcs in Series
|
|
Note
|
||
Coming in with 1700CCA (cold cranking amps) and 100Ah of storage to run all your electronics needs
|
12V6~25Ah (If need other capacity, pelase contact us)
Datasheet | Specification | ||||||
Model | 12V6Ah | 12V7Ah | 12V9Ah | 12V12Ah | 12V20Ah | 12V25Ah | |
Nominal Voltage | 12.8V | ||||||
Nominal Capacity | 6Ah | 7Ah | 9Ah | 12Ah | 20Ah | 25Ah | |
Nominal Energy | 76.8Wh | 89.6Wh | 115.2Wh | 153.6Wh | 256Wh | 320Wh | |
Dimension (L * W * H) |
90*70*107 |
151*65*100 mm |
151*65*100 mm |
151*98*101 mm |
181*77*167 mm |
181*77*167 mm |
|
Approx. Weight | 0.75kg | 1.06kg | 1.34kg | 1.55kg | 1.8kg | 3kg | |
Terminal | F2 | F2 | F2 | F2 | M5 | M5 | |
Cycle Life |
≥3000 Cycle @80%DOD, at 25°C
|
||||||
Months Self Discharge |
≤3% per month at 25°C
|
||||||
General | |||||||
Charge
|
Charge Voltage
|
14.6+0.2V Calculated according to 3.65V voltage of each cell
|
|||||
Standard Charge Current | 0.2C | ||||||
Max. Charge Current | 0.5C | ||||||
Discharge
|
Max. Continuous
Discharge Current
|
1C
|
|||||
Peak Discharge Current
|
2C (<3S)
|
||||||
Discharge Cut-off Voltage
|
10.0V Calculated according to 2.5V voltage of each cell
|
||||||
Temperature
|
Charge
|
0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity
|
|||||
Discharge
|
-20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity
|
||||||
Storage
|
15°C ~ 35°C (Please charge and discharge your battery every month)
|
||||||
Parallel Connection
|
Support 4pcs in Parallel
|
||||||
Serial Connection
|
Support 4pcs in Series
|
||||||
Note
|
|||||||
Series and Parallel connections DO NOT recommended at the same time | |||||||
If need serial connection, please check whether the model support
|
